Surface Sport - Solar charger for electric bikes with 36V or 48V battery - Seat tube mount

Name: Surface Sport - Solar charger for electric bikes with 36V or 48V battery - Seat tube mount
Brand: CycloSun
SKU: CS-SPORT
Price: 595 EUR
Availability: OutOfStock

€595.00

Tax included

With the CycloSun Sport solar charger, your electric bike recharges itself: no more worries about battery failure! The charger attaches to the seat tube or luggage rack and transforms your electric bike into a solar bike in 5 minutes, without any modification. With the CycloSun solar charger, you are autonomous: your bike produces the energy you need, the battery recharges optimally every day and lasts longer. The solar charger allows you to travel up to 250 km/week without a power outlet, enough to ensure your daily commute or bike rides. 5-year warranty.

Battery voltage

SOON AVAILABLE: SIGN UP TO BE NOTIFIED!

I agree to the terms and conditions and the privacy policy

Description

SURFACE SPORT SOLAR CHARGER

With the Surface Sport solar charger, there's no need for a power outlet: let your electric bike recharge itself!

Autonomy

The Surface Sport solar charger combines a shatterproof 50W solar panel and a high-efficiency charge controller. Solar battery charging is 100% automatic, whether the device is on or off: the battery is always charged when you need it.

In good weather, the Surface Sport solar charger produces up to 250 Wh per day (Central Europe), the equivalent of 35 to 50 km of additional range. Production varies depending on many factors: latitude, season, weather, temperature, orientation, exposure time, and battery charge level.

Safety

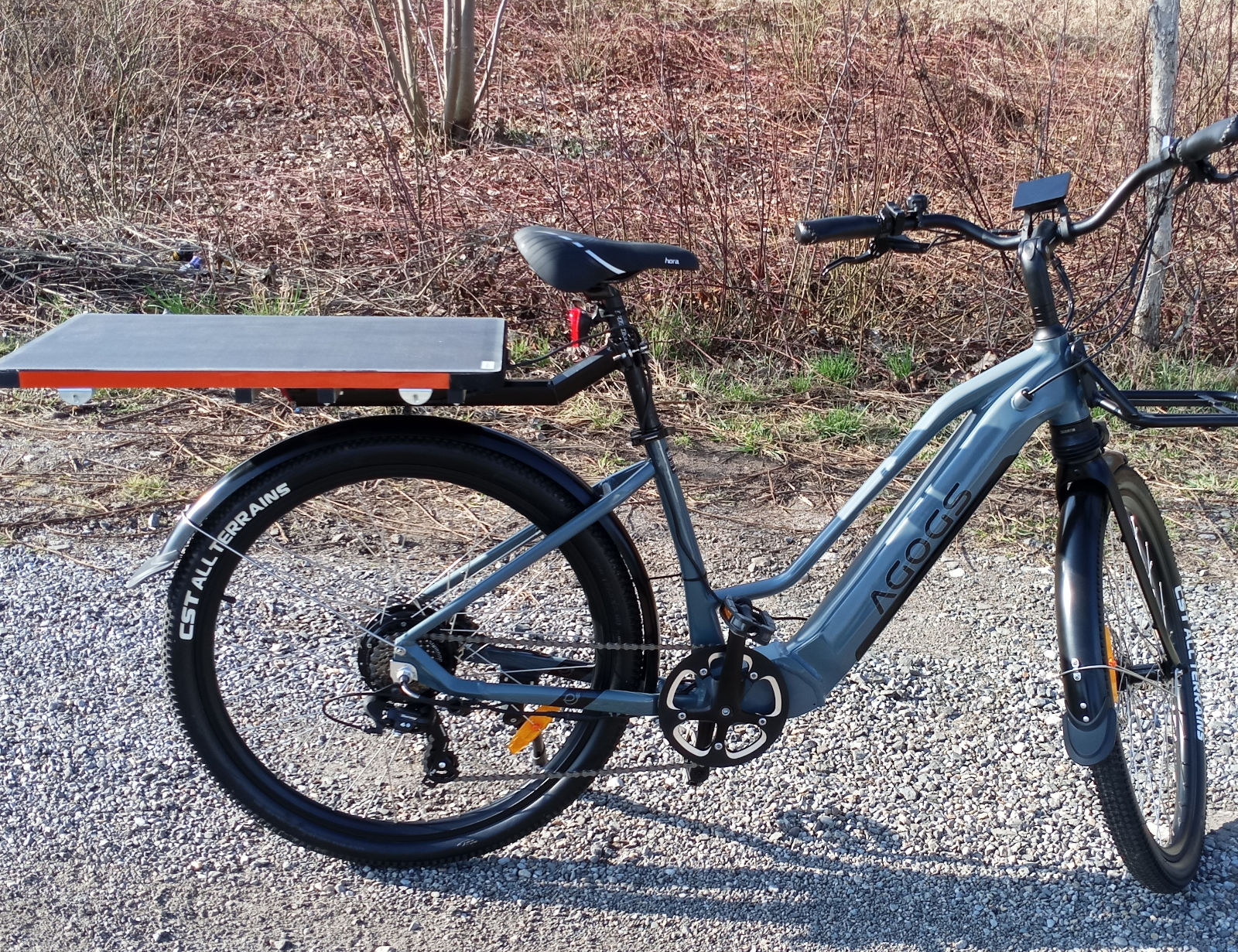

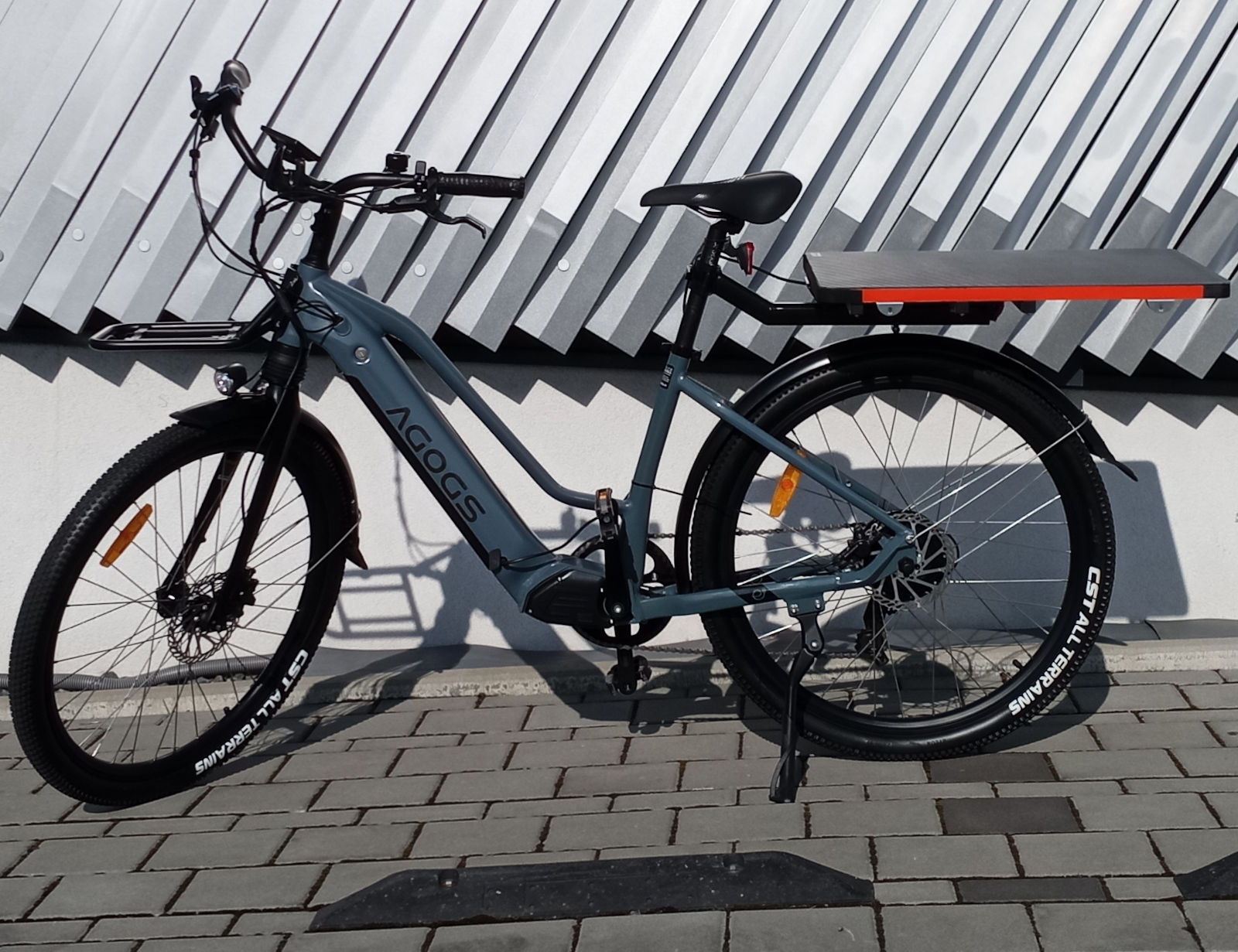

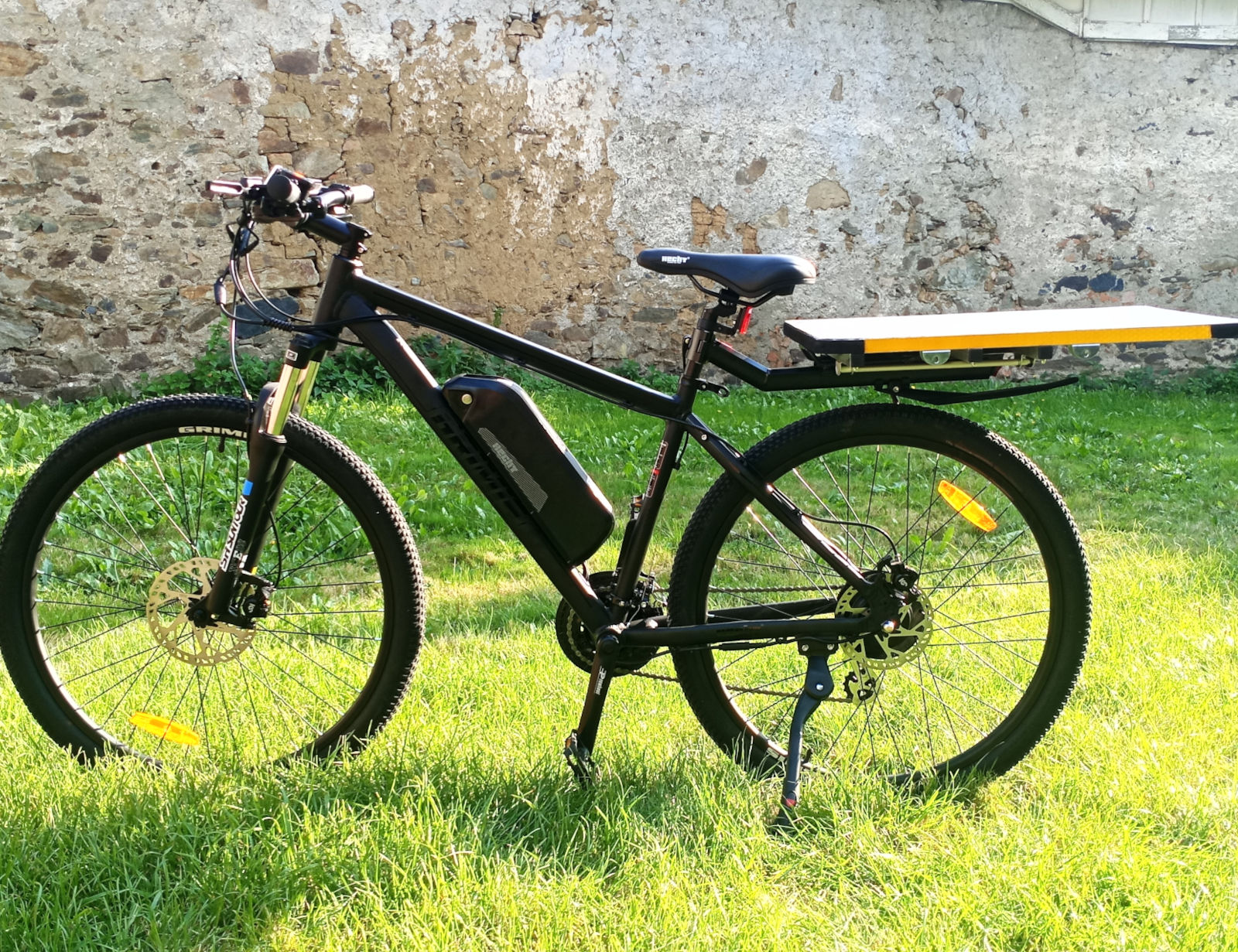

The Surface Sport solar charger attaches to the seat tube. With its rounded corners, the Surface Sport is much narrower (45 cm) than the handlebars: nothing protrudes!

The reflective side and rear strips are an additional safety feature: you are more visible on the road, especially when driving at night.

Modular

Le chargeur solaire Surface Sport possède une prise auxiliaire pour s'adapter à tous vos besoins d'autonomie.

Si vous partez en voyage, vous pouvez connecter un panneau solaire externe pour charger plus rapidement, soit pendant les pauses, soit en roulant (installation sur une remorque).

Si vous changez de vélo électrique, la tension de sortie du contrôleur est programmable (24V, 36V, 48V).

Sustainable

A battery requires constant maintenance, otherwise its performance will quickly decline. With the Surface Sport solar charger, the battery maintains an optimal charge even during long periods of inactivity: your battery lasts longer.

The Surface Sport solar charger has been tested for 10 years in real-world conditions and comes with a 5-year warranty. The Surface Sport is robust and weighs only 3.9 kg. Once installed, the solar charger generates no vibration or noise and is drop-resistant.

Easy installation

The Surface Sport solar charger attaches to the seat tube; no modifications are necessary.

COMPATIBILITY

The solar charger is compatible with all electric bikes that meet the following 3 criteria:

#1. Standard connector

The Surface Sport solar charger uses cylindrical connectors in the standard DC 5.5 x 2.1 mm format. This connector format is found on many recent electric bikes.

Battery models with a connector in XT60, XT90, IEC, XLR-3, RCA, GX16 or GX12 format are compatible with an adapter.

Bicycles equipped with battery connectors with a proprietary format are not compatible: Bosch, Yamaha, Shimano, Brose, etc.

#2. Charge while driving

If you can use your electric bike's display when the battery is charging from the mains, then you can charge the battery while riding with a solar charger.

If the screen goes black, you can only charge when stopped.

#3. Battery access

The battery can be located under the saddle, on the luggage rack or on the frame with a charging connector accessible while riding.

TECHNICAL SPECIFICATIONS

CycloSun Surface Sport Solar Charger

• Aluminum frame
• Dimensions: 62 x 45 x 4.5 cm
• 50W monocrystalline solar panel with half-cut cells, high efficiency 22%, 5.5 x 2.1 mm DC male output
• 300W MPPT solar charge controller, 97% maximum efficiency
• Protections against: overload, reverse polarity, short circuits, overvoltage
• LED control display: panel voltage (P) / amps (C) / battery voltage (B)
• Programmable output voltage (24 to 72 V)
• Controller inputs: 2 x 5.5 x 2.1 mm DC female (300W max. total)
• Controller output to the bike battery: 1 x 5.5 x 2.1 mm DC male (for other battery connector types, see optional adapters)
• Weight: 3 kg
• Made in the Czech Republic
• Warranty: 5 years

Seatpost Rack

• Designed for seatposts with a diameter of 25 to 32 mm (not recommended for carbon composite seatposts)
• Weight: 900 g
• Maximum load: 10 kg
• Bracket material: Aluminum
• Warranty: 2 years

INCLUDED

• CycloSun solar charger
• Seatpost rack
• Mounting system with 2 rack brackets
• 2 cables to connect the controller to the battery:
• 0.5 m (battery on the rack or under the saddle)
• 1.5 m (battery on or inside the frame)
• 6 cable ties
